  Machine Tools



Chicago Dreis & Krump Sheet Metal Hand Brake

Type: Sheet Metal Hand Brake

Manufacturer:
Chicago Dreis & Krump
Model:
816
Serial:
Capacity:
- 16ga (mild steel)
- 20ga Stainless Steel
-
8' Wide





$1,995.00

Teledyne Pines Bender Type: Tube Bender

Manufacturer: Teledyne Pipes
Model No.: 2
Type: Tube Bender, Hydraulic
Serial Mo.: 11235-79141
Max. Radius: 12"
Max. Pressure: 2000 PSI
Spindle Torque: 11,529 Ft. Lbs.
Chain: 2 in. Pitch
Bending Rotation: Counter Clockwise
Max. Bend Angle: 180 + Over Bend for Springback
Max. Tube Length: 13'
Bending Arm Speed: 5-1/2 RPM
Pump Motor: 10HP
Electrical: 460V, 3Ph, 60Cy.
Year of MFG: 1979

Tube Specifications:
* Round Tubing (Mild Steel): 3" x 0.109" WT (Stainless): 3" x 0.065" WT
* Steel Pipe (Schedule 80): 2.375" x 0.280" WT
* Square Tubing (Mild Steel): 2 1/2" x 0.083" WT
* Round Bar (Mild Steel): 1 7/8"
* Square Bar (Mild Steel): 1 1/16"


Dies Measurements:
(side to side) 14", 16", 20" and 26"

$13,900.00

Type: Lathe (Metal)

Manufacturer: LeBlond
Model: 15" Regal
Serial No.: 11C-971
Swing over bed & carriage wings: 15-1/2"
Swing over cross slide: 9-1/2"
Distance between centers: 54"
Spindle Through Hole Size: 2-17/64"
Number of Spindle speeds: 12
Low Range RPM: 30-1200
High Range RPM: 45-1800
Horsepower: 7-1/2
Voltage: 460V, 3 Phase

SOLD


Type: Lathe

Manufacturer:
Clausing
Model: 5917
Serial: 500236

- 12" Swing
- 48" Bed Length






$2,150.00

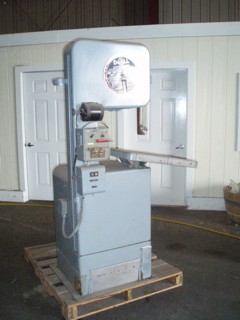

Type: Band Saw

Manufacturer: DoAll
Model No.: 2013-V
Serial No.: 500-93177

Band Speed:
55-300 fpm (17-90 mpm) 960-5,200 fpm (292-1,585 mpm)
AC Motor Drive: 2-hp (1.5kW)
Machine Weight (net): 1,250 lbs
Throat, Band to Column: 20"
Maximum Work Height: 13"
Band Width Capacity: 1/16 to 1"
Band Length: 154"
Table: 26" x 26" Tilts 45R, 10L
Table to Floor Height: 39"
Table Capacity: 500 lbs
Upper Wheel Adjustment: 3"
Wheels: Aluminum with crowned rubber tires
Height, Max: 80-1/4"
Floor Area Req.: 53-1/2" x 45"

Call for Price

Dreis & Krump Chicago HS414 Shear Type: Shear, Hydraulic

Manufacturer: Dreis & Krump Chicago
Model No.: HS 414
Product: Shear
Type: Hydraulic
Capacity: 14 Ga x 52"mild steel
Motor HP: 3
Shipping weight: 1610 lbs
Dimensions: 68"L x 22"W x 41" H




$3,500.00

Northfield 20 vertical bandsaw

Type: Vertical Band Saw (Wood)

Manufacturer: Northfield
Model: 20
Serial: 621454-F
Voltage:
208V, 6.4A / 220V, 6.4A / 444V, 3.0A - 3Ph.
HP: 1
Band Length:
140"
Wheel Size: 20"
RPM: 870

14" Clearance
Foot Brake
Ball-bearing blade guides
Heavy cast-iron construction

NO Table

$1,595.00


Powermatic 140 Vertical Bandsaw

Type: Vertical Band Saw (Wood)

Manufacturer: Powermatic
Model: 140
Serial: 0-2258
Voltage:
110/220V, 60cy, 1ph
Band Length:
99"





NO Blade


$1,200.00


Rockwell Delta 9 Horizontal Bandsaw

Type: Horizontal Cut-Off Band Saw

Manufacturer: Rockwell Delta
Model: 9
Serial: J627489
Voltage:
220V, 3ph
RPM: 1725
Motor: 1HP
Band Length:




$2,000.00


Type: Punch Press

Manufacurer: Geka
Model No.: HYD-50, 50/A
Serial No.: 7780

Capacity: 50 Tons
Round Bars: 1 9/16"
Square Bars: 1 9/16"
Flat Bar: 12" x 9/16" 8" x 3/4"
Punching Capacity: 1-1/16" thru 1/2"
Throat Depth: 20" Stoke 2-3/8"
Thickness: 3/8" Depth 3.5" Width 1-5/8"
Phase: 3




$7,995.00

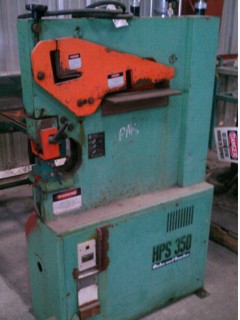

Mubea Muhr & Bender HPS 350 Ironworker Type: Ironworker

Manufacturer: MUBEA
Model: HPS350
S/N: 0151981370836
Capacity: 38 Ton
Length of Stroke: 1-11/32"
Depth of Throat: 6"
# of Strokes: 12 (per min.)
Motor: 4 HP
Voltage: 208-240/440-480, 60Hz.
Dimensions: 38-1/2"L x 18"W x 57-1/2"H
Weight: 1155 lbs






$5,500.00

Type: Punch Press

Manufacturer: Rousselle
Model No.: 3F
Serial No.: 25261
Capacity: 25 tons
Stroke: 3"
Strokes per minute: 135
Weight (approx.): 4,400 lbs
Power: 3 HP
Electrical: 208-230/460/3/60Hz.
Dimensions: (L x W x H) 48" x 60" x 90"

$3,995.00


4F, 40-ton - $4,995.00
6F, 60-ton - $6,995.00

Pexto 137-K Shear Press

Type: Stomp Shear

Manufacturer: Pexto
Model: 137-K
Serial: 10/56
Capacity: 16 Gauge

- 37" Cut
- Back Gauge




$1,800.00


Pexto G42-A Shear Press

Type: Stomp Shear

Manufacturer: Pexto
Model: G42-A
Serial: 2-58
Capacity: 16 Gauge

- 42" Cut
- Back Gauge





$1,800.00


Famco Shear Press Type: Stomp Shear

Manufacturer:
Famco
Model: 653
Serial: 895402

- 52" Cut
- 16 Gauge Mild Steel






$2,250.00

  Type: Hollow Chisel Mortiser

Manufacturer: PowerMatic / A.L. Young Machinery Co.
Model: 10
Serial: 2-9884
Voltage:
208V, 3.3A, 80cyc, 3450rpm
220V, 3.2A, 80cyc, 3450rpm
440V, 1.6A, 80cyc, 3450rpm
Motor: 1HP, 3Ph
Motor MFG: Robbins & Myers, Inc.
Surface Table: 36"L x 6"W

Comes with a 1/2" Shank Mortising Chisel





$1,500.00

Type: Band Saw

Manufacturer: Marvel
Series: 8
Model No.: 8-MK-1
Capacity:
*nominal: 18" x 20"
*maximum: 18" x 22-1/2"
*blade at 45 degrees nominal: 18" x 12-1/4"
*blade at 45 degrees maximum: 18" x 13"
Table working surface: 33" x 24-1/4"
Table height: 34-1/2"
Number of tee-slots in table: (4) accepts 5/8" t-bolts
Blade length: 14'6"
Blade width/gauge: 1" x .035
Infinitely variable blade speeds: 50-450 F.P.M.
Feed pressure range, infinitely variable: 0-140 Lbs
Dimensions: 93" L-R x 42" F-B x 87" H
Weight: approx. 2,670 Lbs

$10,500.00
